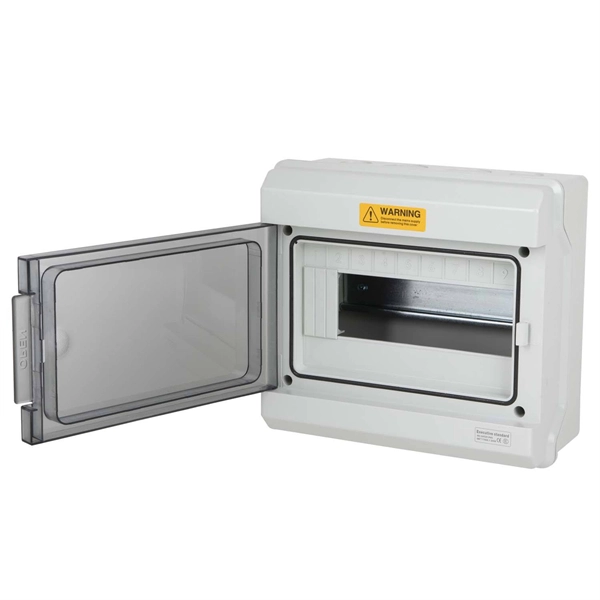

How to wire indoor electrical distribution boxes

Wiring an indoor distribution box involves connecting the main power supply to protective devices and distributing it safely to subcircuits with proper phase, neutral, and earth connections.

Key Components of a Distribution Box

• Main Isolator (DP Switch): Acts as the main switch to manually open or close the power supply.
• RCCB/RCD: Protects against current leakage and electric shock by isolating circuits during faults.
• MCBs (Miniature Circuit Breakers): Protect individual subcircuits from overloads and short circuits.
• Neutral and Earth Links: Distribute neutral and earth connections to all subcircuits.
• Fuses or Surge Protectors: Optional devices for additional protection against overcurrent or voltage spikes .

Step-by-Step Wiring Process

1. Preparation and Safety
   • Ensure the main power is switched off before starting.
   • Use insulated tools and wear protective gear.
   • Verify the distribution box is rated for indoor use and matches the load requirements .
2. Mounting the Box
   • Install the box on a dry, accessible wall at approximately 1.5 meters height.
   • Ensure it is level and stable, with adequate ventilation .
3. Connecting the Main Supply
   • Connect the incoming phase (live) and neutral wires from the energy meter to the main isolator.
   • From the isolator, connect the phase wire to the RCCB and the neutral wire to the neutral link .
4. Connecting Subcircuits
   • Connect the phase output from the RCCB in parallel to the MCBs for each subcircuit.
   • Connect the neutral wires from each subcircuit to the neutral link.
   • Connect the earth wires from each subcircuit to the earth link, which should be properly earthed to an earth rod or pit .
5. Wire Management
   • Strip insulation to the correct length and secure wires to terminals using screws or crimp connectors.
   • Arrange wires neatly, use zip ties, and leave space for heat dissipation.
   • Label each circuit for easy identification and future maintenance .
6. Testing
   • Perform an insulation resistance test to ensure no short circuits.
   • Use a multimeter to check the on/off status of each circuit.
   • Verify that all protective devices function correctly before powering on .

Safety and Compliance

• Follow local electrical codes (NEC, IEC, or regional standards).
• Use UL/CE-certified components.
• Schedule regular inspections and maintenance to ensure long-term reliability . By following these steps, you can safely wire an indoor distribution box, ensuring proper protection, organized wiring, and compliance with safety standards.
