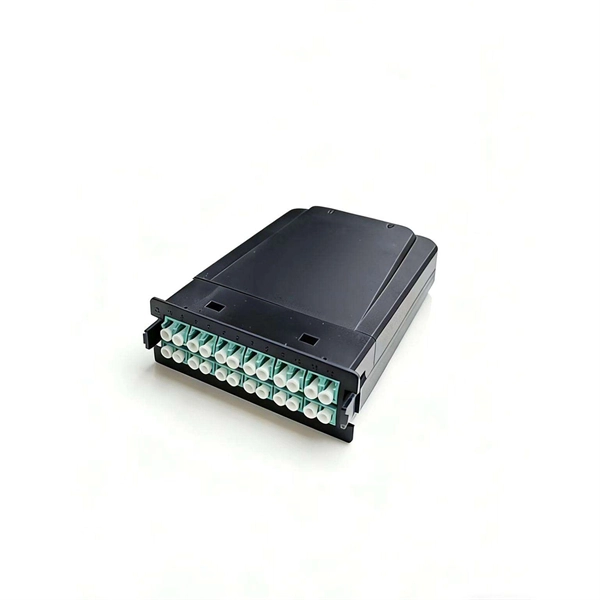

Network patch panel cable management techniques

Effective patch panel cable management involves organized routing, labeling, securing, and planning to optimize network performance, airflow, and maintenance efficiency.

Key Techniques for Patch Panel Cable Management

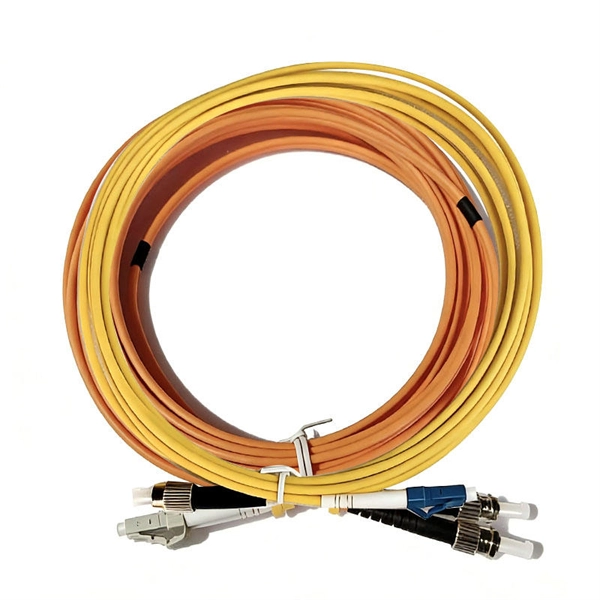

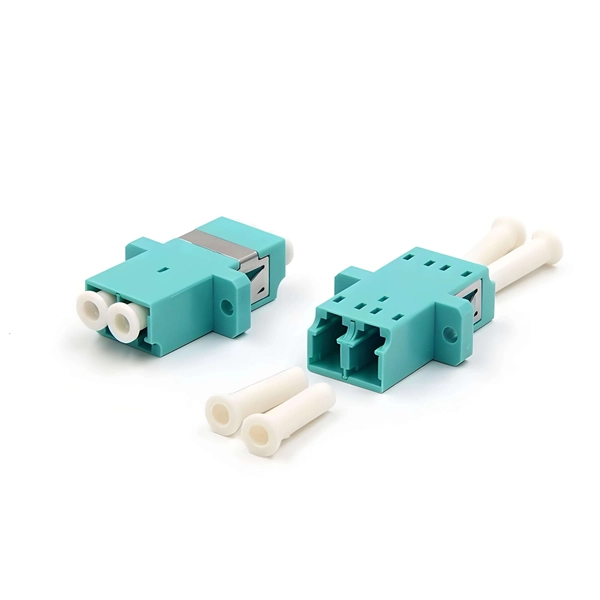

1. Planning Cable Paths Before installation, map out the rack layout and cable routes. Determine whether cables will enter from the top, bottom, or sides of the rack, and plan horizontal and vertical paths to avoid overlapping or obstructing airflow . Allocate 30–40% of patch panel space for future expansion to prevent overcrowding . 2. Labeling and Documentation Label both ends of every cable with durable, wear-resistant tags. Use consistent numbering or color-coding to identify connections quickly, which reduces troubleshooting time and prevents errors during upgrades or audits . 3. Securing and Bundling Cables Use Velcro straps instead of zip ties to secure cables, as Velcro is adjustable and reduces pressure on cable jackets, preventing damage to twisted pairs or fiber optics . Bundle cables by function, type, or destination to minimize interference and maintain a clean appearance. 4. Maintaining Proper Bend Radius Avoid sharp bends, kinks, or excessive tension on cables, especially for fiber optic lines. Use cable radius guides to maintain the minimum bend radius, which preserves signal integrity and prevents micro-bends . 5. Service Loops and Cable Lengths Leave a small service loop for each connection to allow flexibility during maintenance and prevent strain on connectors. Use patch cords of appropriate lengths to avoid clutter and ensure neat routing . 6. Horizontal and Vertical Cable Management Install horizontal and vertical cable managers alongside patch panels to guide cables neatly. Horizontal managers are ideal for short runs between panels and switches, while vertical managers handle longer runs along the rack sides . 7. Airflow and Thermal Efficiency Organized cabling improves airflow within racks, reducing heat buildup and enhancing equipment longevity. Avoid long loops or tangled cords that block cooling pathways . 8. Separation of Permanent and Flexible Cabling Keep permanent horizontal/backbone cabling separate from patch cords. This protects certified infrastructure from accidental damage during routine reconfigurations and simplifies network changes . 9. Regular Maintenance and Audits Periodically inspect and adjust cable routing, labels, and ties to maintain organization. This ensures scalability, reduces downtime, and supports compliance with industry standards such as TIA/EIA . By implementing these techniques, network administrators can achieve a clean, efficient, and scalable patch panel setup, which enhances network reliability, simplifies troubleshooting, and supports future upgrades .
